The Backbone
Pump, accumulator and four valved outlets in one enclosure. Free shipping.
From$799
Home/Plumbing & Accessories
Shop
Plumbing & Accessories.
Add to the cart and pay by card. We ship across the US.
Getting a health permit? Read this first
Hot Water Package
Instant heater on your sink, hot and cold. Runs on the Backbone only.
$350
Water Jug Kit
Two 5-gallon jugs. One grey, one with a weighted line to the Backbone.
$79
Knock Box
Stainless insert for spent espresso grounds.
$75
Parts and add-ons 12 items
Semi-Custom add-ons, sold one at a time for a cart you already own.
- Metal Ice Well 40.9 qt$328
- Plastic Ice Well$46
- Speed Rail 32 inch$173
- Tap Board$202
- Handwash Sink$518
- LED Lighting$213
- Side Extensions Sold as a pair$213
- Charcuterie Tray With domes$190
- Cutting Board$115
- Hotel Pan, 1/3 Size$35
- Hotel Pan, 1/6 Size$18
- Portable Freezer Box 50 liters$575
The plumbing guide
Are you getting a health permit? That answers most of this.

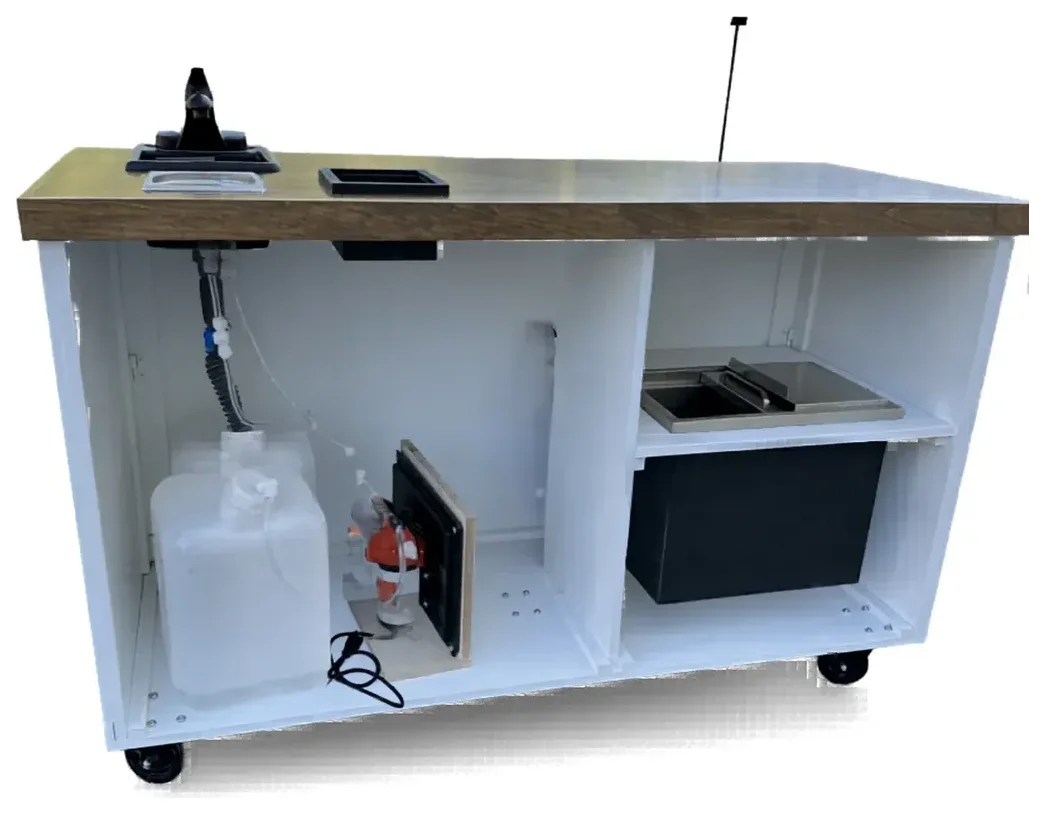

A cart water system is four parts: fresh tank, pump, sink, grey tank. The sink is the part a county has an opinion about.
7 sections · 2 pumps · 3 sinks
Start with the sink. A permit decides which one.
Cut the panels first and the county can send the cart back.
- Price
- Backbone $899 stainless, $799 black steel. The simple pump is quoted with the build.
- Time
- About 3 weeks on the Backbone, before it ships.
The short answer
Two builds, two starting points.
Nobody is inspecting this cart.
Pick the sink that fits the counter. Two connections or fewer and no water heater: the simple mounted pump. Anything more: the Backbone.
Your county has to sign off on it.
The sink stops being your choice. We recommend the 9×9×5 stainless with the gooseneck faucet. Counties that require wash-rinse-sanitize get the three-compartment ABS.
Get your county health department's requirements before you talk to us. We can't design to spec without them. The permitting process covers the rest.
The pump
Two pumps, and the water heater decides.
They split on how many connections you need and whether a water heater is in the plan.
Budget-friendly
Simple Mounted Pump
Pump and accumulator on a plywood board. Reliable for basic builds without a water heater.
- MountingPlywood board
- ConnectionsUp to 2
- FittingsPush-to-connect. No quick-connect fittings included.
- Water heaterNot recommended
- PriceQuoted with your build
Recommended upgrade

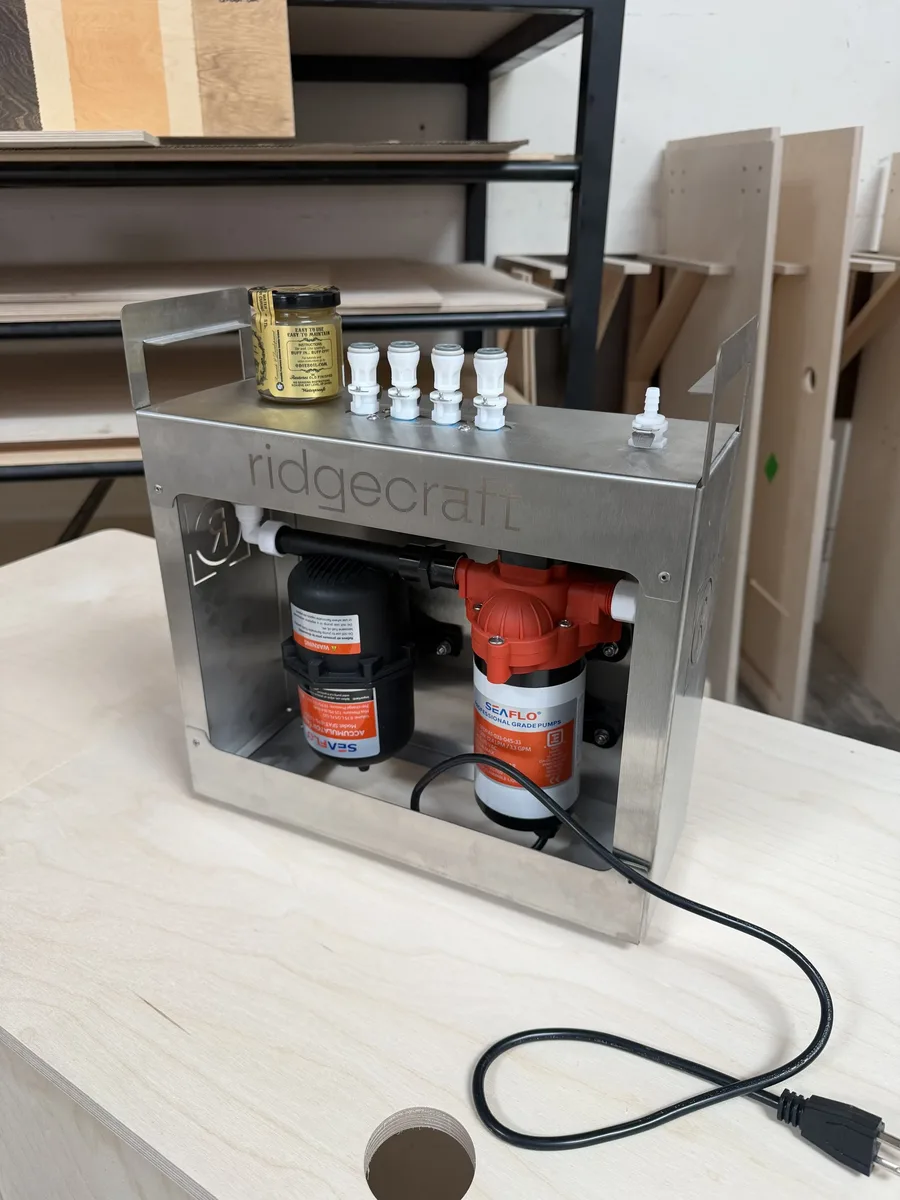

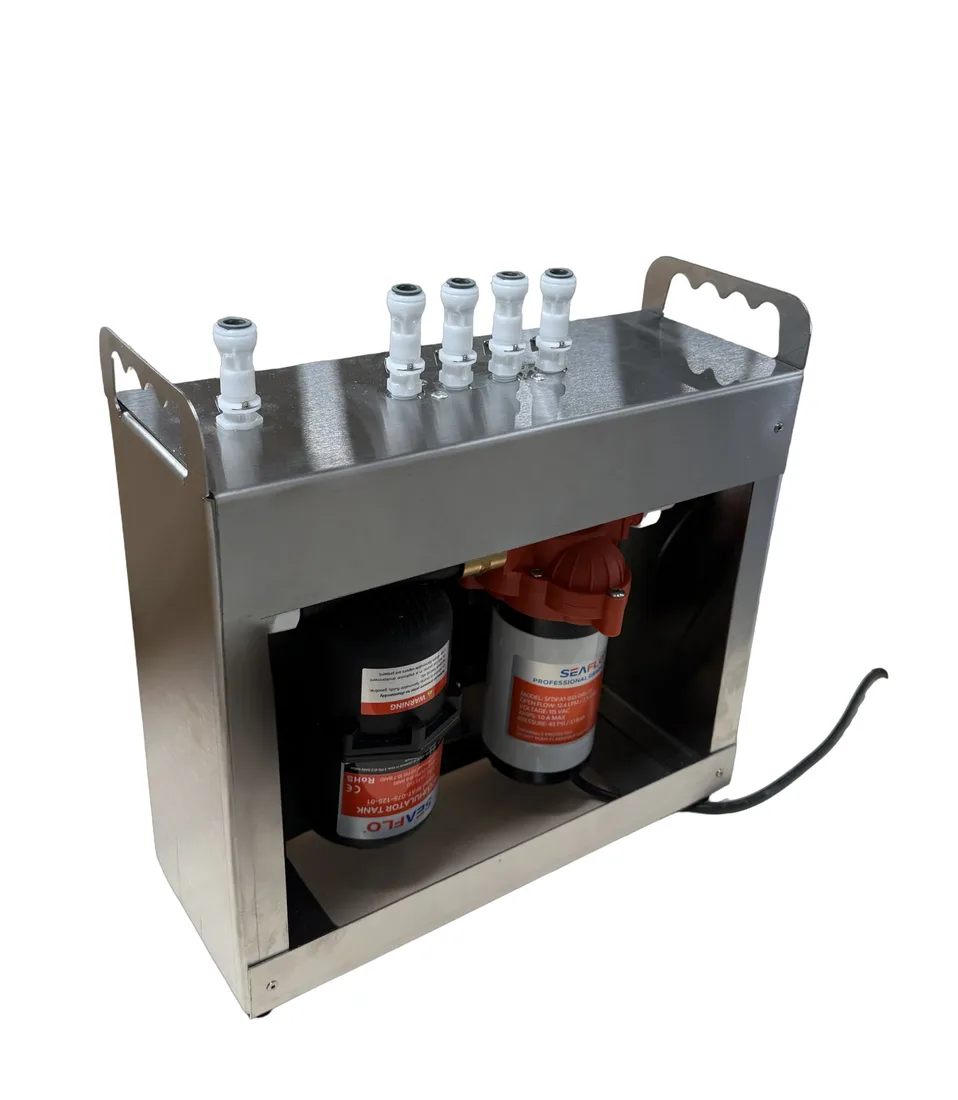

The Backbone
A Seaflo pump and accumulator in a waterproof stainless enclosure. Disconnect a line and the valve closes, so nothing empties onto your counter.
- Flow3.3 GPM
- Pressure60 PSI
- Power110V
- Outlets4× valved quick connect
- Inlet1× valved quick connect
- HousingBrushed stainless or powder-coated black steel, waterproof
- Water heaterCompatible
- Price$899 stainless, $799 black steel. Free shipping.
- Lead timeAbout three weeks before it ships
The Backbone kit also ships with:
- An espresso direct-plumb line with a pressure regulator
- Fittings for the sink and pitcher rinser
- A fresh water tank connection line and all the tubing
- An install guide written for cart builders, not plumbers
Espresso, rinser, sink and hot water all run at once.
The sink
The part your county has an opinion about.
Health code varies by county, and each county runs its own health department. Ask yours before the panels are cut.
Moli Mini Handwash Sink
Compact handwash
For tight counters where a full sink isn't required.
- Smallest sink we fit
- Ask us for dimensions and permit status before you design around it
Most popularHealth dept. friendly
Stainless 9×9×5, gooseneck faucet
Most recommended for permitted builds
The gooseneck clears pitchers and carafes. Most health departments accept it.
- Stainless steel basin
- Exact dimensions get confirmed on your schematic
Health dept. accepted
Three-compartment ABS
Wash · Rinse · Sanitize
For a full wash-rinse-sanitize workflow, which many counties require of mobile food facilities.
- ABS plastic
- Three basins
- Check the requirement with your county before ordering
Pitcher rinsers
Rinsers, and the NSF question.
Two shapes. Check one thing before you pick.
Standard Pitcher Rinser
Two sizes available
Two sizes, for different cup and pitcher diameters.
- Not NSF rated
- Ask us about current availability
Trending
Rinser + Mini Faucet Combo
Larger platform, integrated faucet
A larger rinser with a small faucet that drains into the rinser pan. One drain instead of two.
- Not NSF rated
- Larger footprint — confirm counter space
Knock box
$75 · Add-on
The cutout sits on the left, below the pitcher rinser. The rinser moves up to make room.
If your permit says NSF
Our standard rinsers are not NSF rated. NSF-certified ones start around $250. If your permit requires NSF, tell us when quoting and we'll source one that meets it.
Tanks & hot water
What comes standard, and what does not.
- Fresh water
- 5 gallons. Standard in every plumbing package.
- Grey water
- 5 gallons. Also standard.
- Larger tanks
- On request.
- Custom sizes
- Sizes and configurations for specific health code requirements. Tell us when quoting.
- Custom layouts
- For permitted builds. Every spec signed off before production.
- Hot water
- Instant heater, preinstalled on your sink, hot and cold side. $350.
One constraint worth reading twice
The Hot Water Package works with the Backbone only. The simple pump isn't recommended with a water heater. If hot water is in your plan, even a season from now, buy the Backbone once.
Building it yourself

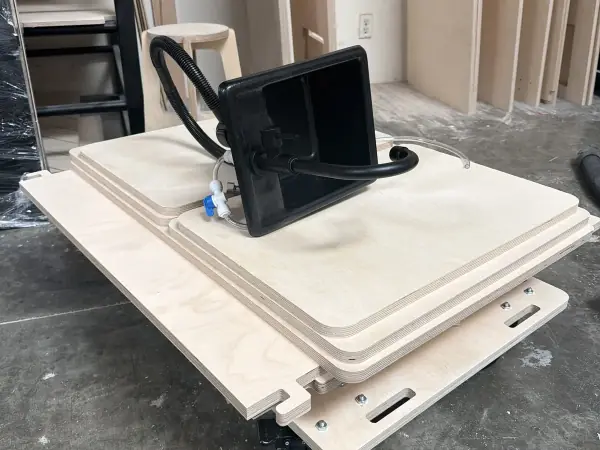

If you bought the flat pack, the plumbing is in the box.
The Pack Flat DIY bundle includes a Backbone kit, pitcher rinser, mini sink with faucet, and the drainage and tubing. Water jugs and the knock box are separate add-ons.
Health permitting
What your county sees is the drawing.
You apply to your county. We provide the schematics and the build.
Get your county's requirements first. We can't design without them.
A 30-minute consult on dimensions, sinks, layout and NSF.
Schematics and plumbing diagrams, a flat fee of $300. What your county reviews.
You submit to your county. We don't file or follow up. Approval takes weeks to months.
"Not sure what you need? Tell us what you are serving and where."
Pick plumbing options on the order form and we'll put them in the estimate. Or reach us at info@ridgecraftshops.com or 714.519.6410.
